VB-51 : Conversion of Temperature

Write an event procedure to convert the Fahrenheit temperature to Centigrade. Use a Horizontal scroll bar to select the Fahrenheit temperature.
Celsius=(Fahrenheit-32)*0.555
Refer Temperature Conversion also.

A)    Program Design :

(B) Property(Controls Used) :

• 4 Labels Captions as :  Fahrenheit(Name Label1), Celcius(Name Label2), 0(Name lbl_cel), 0(Name lbl_Fah) brespectively.
• HorizontalScrollBar : Min-0,Max100,Large Change 5 , Name-Hscr_fah

(C) Attaching Code to the Object :

Private Sub Form_Load() Hscr_Fah_Change End Sub

Private Sub HScr_Fah_Change()  lbl_Fah.Caption = Hscr_Fah.Value  lbl_Cel.Caption = (Hscr_Fah - 32) * 0.555  End Sub

(C) Result :

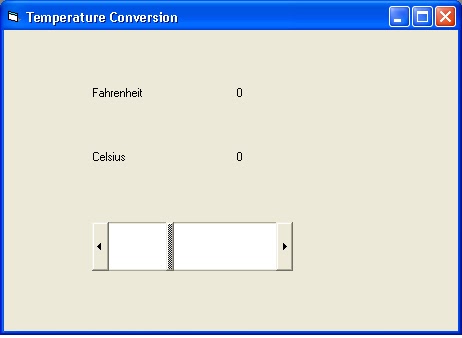

Moving the ScrollBar will show the temperature in both degrees (from 0-100)

==================================================================

• Back to Home   &  VB

=========================================================

VB-50 : Displaying State if the city is given

==================================================================================

Before going to do any Database Program ,Click here to  understand Database Concepts thoroughly.

That is , Creating Database within VB Platform

==================================================================================

Create a table called "Area Code" using the Visual Data Manager with the following fields:

• Area Name
• City
• State
• Pin Code.

Write a program using Data Control to display the state if the city is given.And also to display the Area name if the Pin code is given.
==========================

A)    Program Design :

• We need to design a Database for this program.

Refer Linking to Database to create a table in Access. The created table (say,emp2) with the fields as per the question  is given below :

(Here,db1 is the DataBase name, and emp2 is the Table name given)  :

Field Name	Description	Data Type
Area	Area Code	Text
City	City	Text
Pin	Pin Code	Number
State	State	Text

•


(B) Property(Controls Used) :

• 5 Labels
• 4 Text Boxes : Visible Property-False, Index Property from 0 to 3
• One Data Control (Database name db1 and RecordSource emp2)
• 4 Command Buttons with Captions : Main Menu (name:cmd_back,Visible Property-True), Data Transaction(name:command-1) , Search(name:command-2) and Find(name:command-3). Also,(Set the Visible Property as False for this 3 command Buttons)

When we set some properties of the controls as True or False, the form will appear while running....as,

(C) Attaching Code to the Object :

Private Sub setVisible(flag As Boolean) Data1.Visible = False For Each i In frmemp_data.Controls If i.Name = "label1" Then i.Visible = flag ElseIf TypeOf i Is TextBox Then i.Visible = flag End If Next i End Sub

Private Sub setcontrol(flag As Boolean) Command1.Visible = flag Command2.Visible = flag cmd_back.Visible = Not flag End Sub

Private Sub setbound(flag As Boolean, Optional src As String) For Each i In frmemp_data.Controls If TypeOf i Is TextBox Then If flag = True Then i.DataSource = src ElseIf Not IsNull(i.DataSource) Then Set .i.DataSource = "" End If End If Next i End Sub

Private Sub cmd_back_click() setbound (False) setVisible (False) setcontrol (True) Command3.Visible = False End Sub

Private Sub Command1_Click() Data1.EOFAction = 2 setbound True, "Data1" setVisible (True) setcontrol (False) End Sub

Private Sub Command2_Click() Dim str As String setVisible (True) Data1.Visible = False setcontrol (False) setbound False For Each i In frmemp_data.Controls If TypeOf i Is TextBox Then i.Text = "" End If Next i End Sub

Private Sub Command3_Click() Dim str As String If Text2.Text <> "" Then str = " city=" & Text1.Text & "" Data1.Recordset.FindFirst Data1.Recordset.FindFirst str If Data1.Recordset.EOF Then MsgBox "Such City Not Found" Exit Sub Else If Text3.Text <> "" Then str = str & "and pin=" & Text1.Text & "" Data1.Recordset.FindFirst Data1.Recordset.FindFirst str If Not Data1.Recordset.EOF Then Text1.Text = Data1.Recordset.Fields("area").Value End If Text4.Text = Data1.Recordset.Fields("state").Value End If End If End Sub

====================================================================
